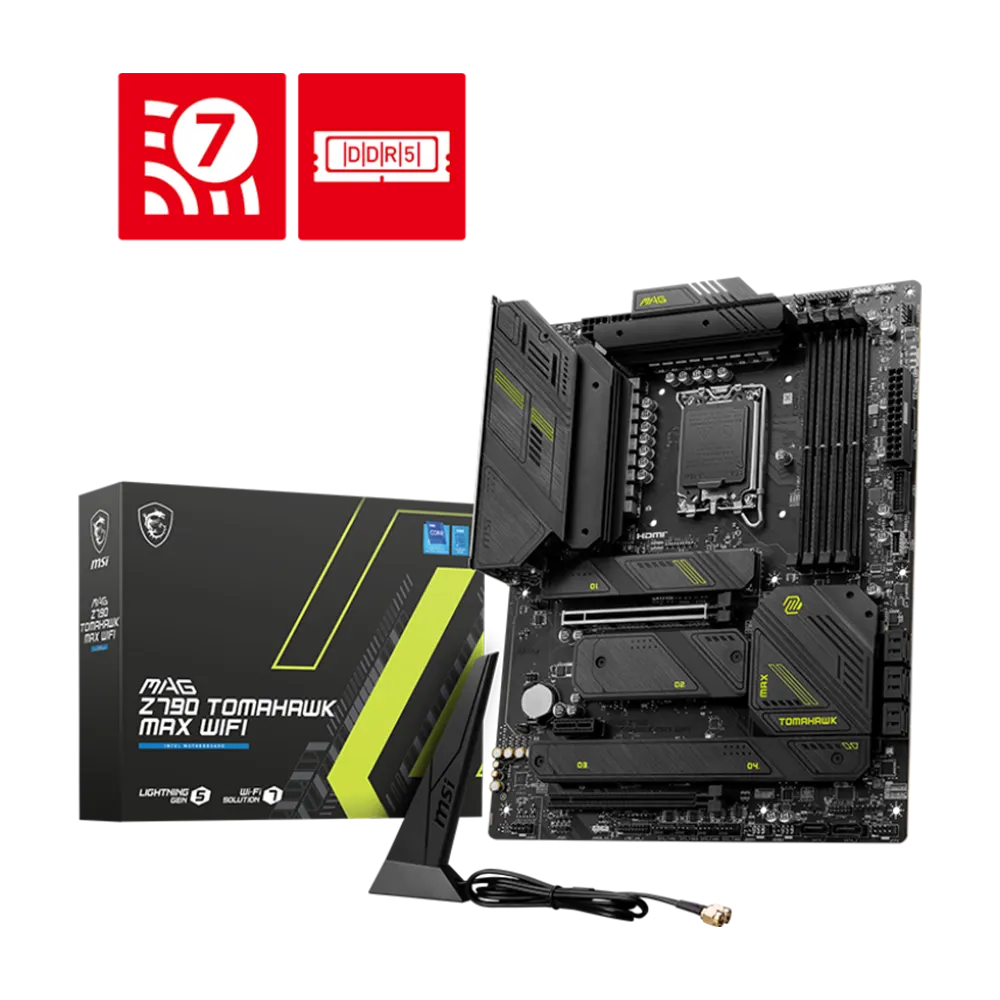

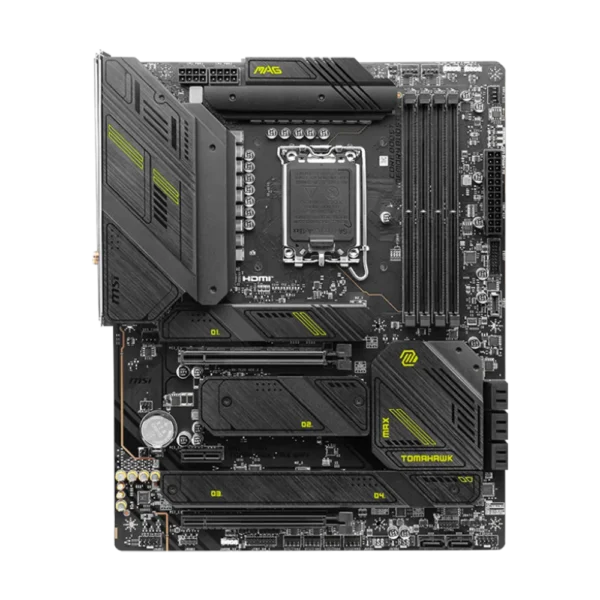

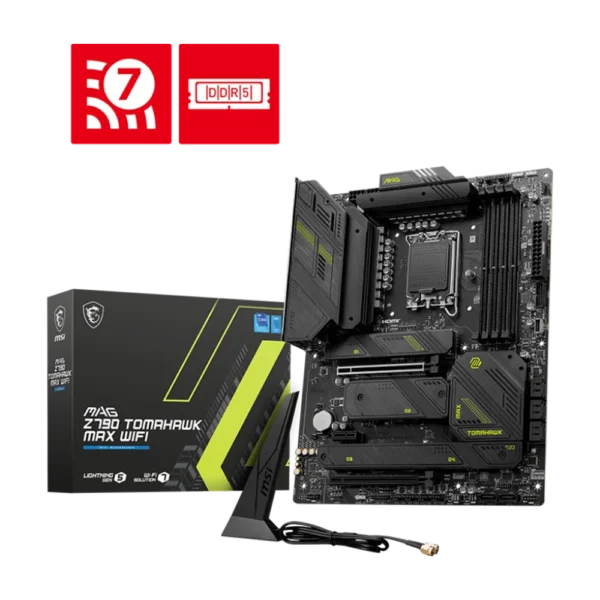

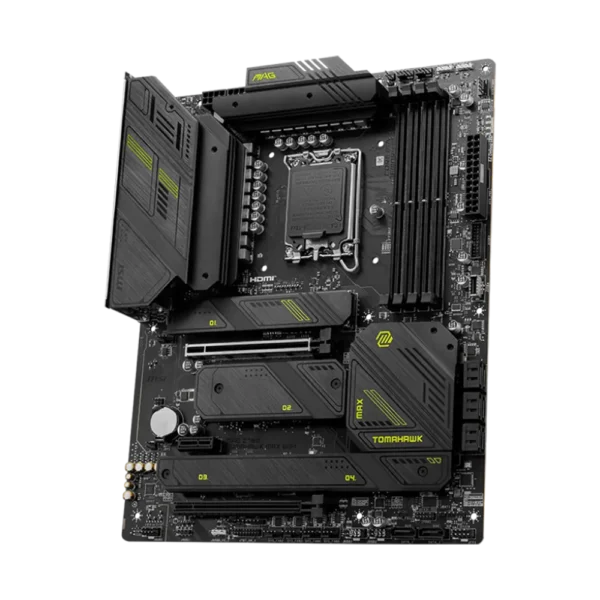

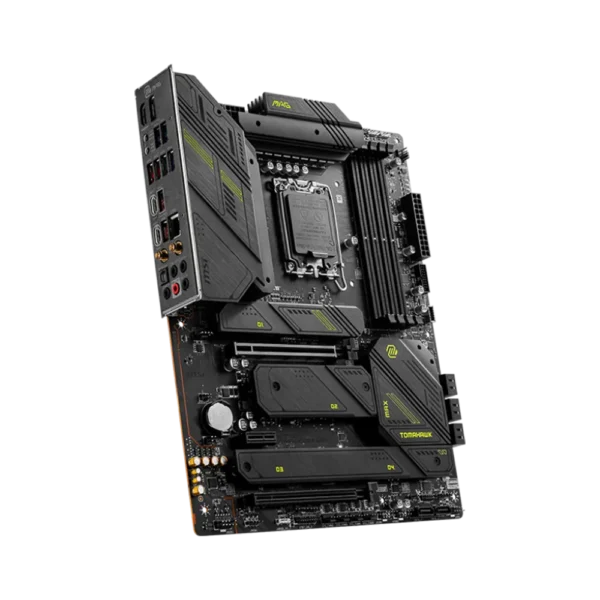

MSI Z790 Tomahawk MAX WIFI7 DDR5 | Intel S1700 ATX
- MSI Tomahawk Max WIFI
- Z790 Chipset Series DDR5
- For Intel 12/13/14 Gen
- WIFI 7 & Bluetooth Inside
- 4x DDR5 DIMM’s 7800Mhz+
- Lightning PCIe5.0 Slot
- Suppot 5.0 M.2 NVMe SSD
- 16+1+1 Power phases
- PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design
- AUDIO BOOST 5:
- High Quality PCB: 6-layer PCB
Përshkrim
| Brand | MSI |
|---|---|
| Model | MAG Z790 TOMAHAWK MAX WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: – 1DPC 1R Max speed up to 7800+ MHz – 1DPC 2R Max speed up to 6600+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5600+ MHz |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express 4.0 x16 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices * SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| Audio Chipset | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5Gbps LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. |
| Bluetooth | Yes |
| Back I/O Ports | 1 x Display Port 4 x USB 3.2 Gen 1 5Gbps (Type-A) 4 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth Antenna Bracket 5 x Audio Connectors 1 x HDMI 1 x Clear CMOS 1 x Flash BIOS 1 x USB 3.2 Gen 2 10Gbps (Type-C) 1 x USB 3.2 Gen 2×2 20Gbps (Type-C) 1 x Optical S/PDIF Out |
|---|
| Onboard USB | 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|---|---|
| Other Connectors | 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) |
| Date First Available | October 11, 2023 |
|---|
Informacion shtesë
| Brand | MSI |
|---|---|
| Condition | New |
| CPU Socket | LGA S1700 |
| fit-size | ATX |
| lights | No Ilumination |
| Ram Frequency | DDR5 4800Mhz, DDR5 5200MHz, DDR5 5600MHz, DDR5 6000MHz, DDR5 6400MHz, DDR5 6600MHz, DDR5 6800MHz, DDR5 7600MHz |
| Storage Type | 2.5" Sata, 22110, 2280, 25110, 2580, 3.5" Sata, M.2 Sata, NMVe, PCIe 3.0, PCIe 4.0, PCIe 5.0, PCIe x2, PCIe x4 |
| Warranty | 12Months |
